Good morning, everyone,
I’m new to the forum and would appreciate some help identifying the part number of a corrugated metal hose.
To give you some context: I’m a hydromechanical systems designer at a small company, and I’m currently working on a modification project for an aircraft equipped with a Rotax 914 engine. However, due to a change in the loft, the available space in the engine bay has become very limited.
Initially, we planned to use MIL-DTL-6000C hoses for the water cooling system and MIL-DTL-13444G Type 3 hoses for oil cooling. However, the space constraints do not allow for their minimum bend radius (even though MIL-13444 has a smaller bend radius than MIL-DTL-6000C).

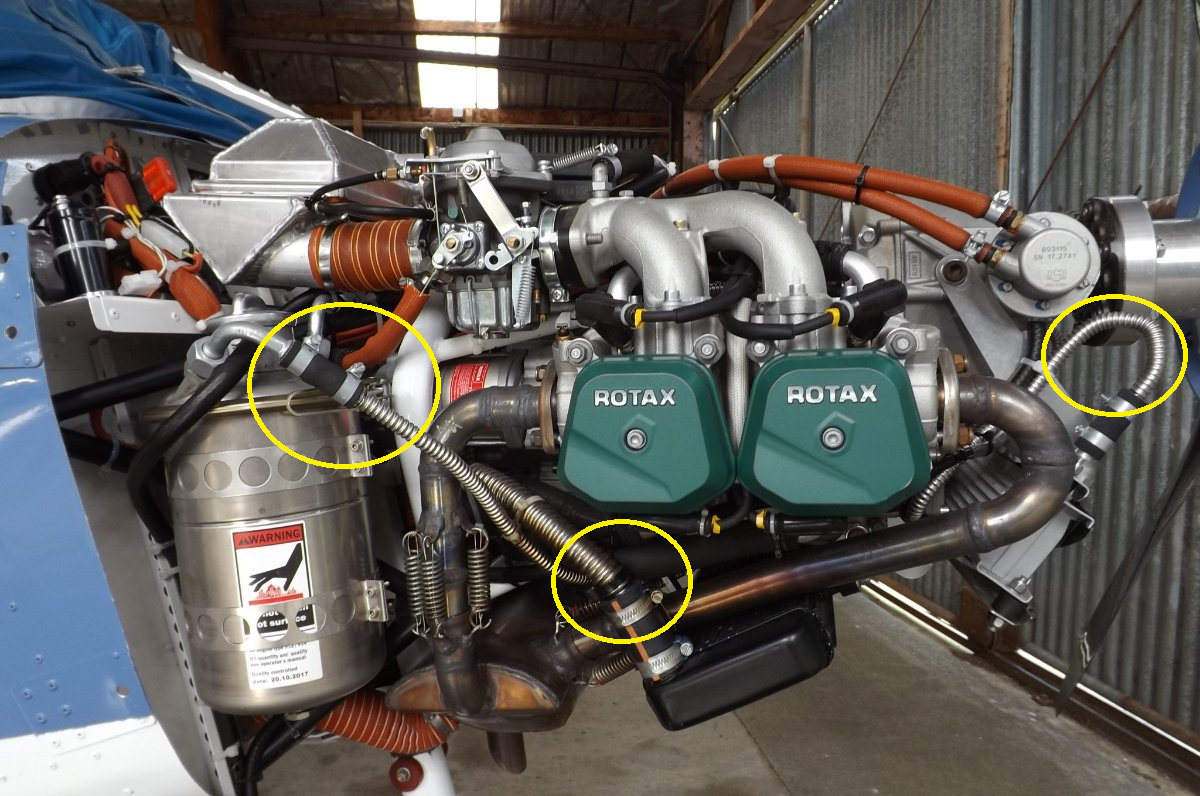

While searching for a solution, I found the attached image. As you can see in the yellow circle, both the water and oil cooling connections are made using a corrugated metal hose.
Has anyone here used this type of solution?
Could you share the part number or supplier of these hoses?
If anyone has experience with them, could you let me know whether these hoses have any bead-type connections at the ends?
Thank you in advance for your help.
