6. Section 9


danny_galaga

134 views

Detail section 9

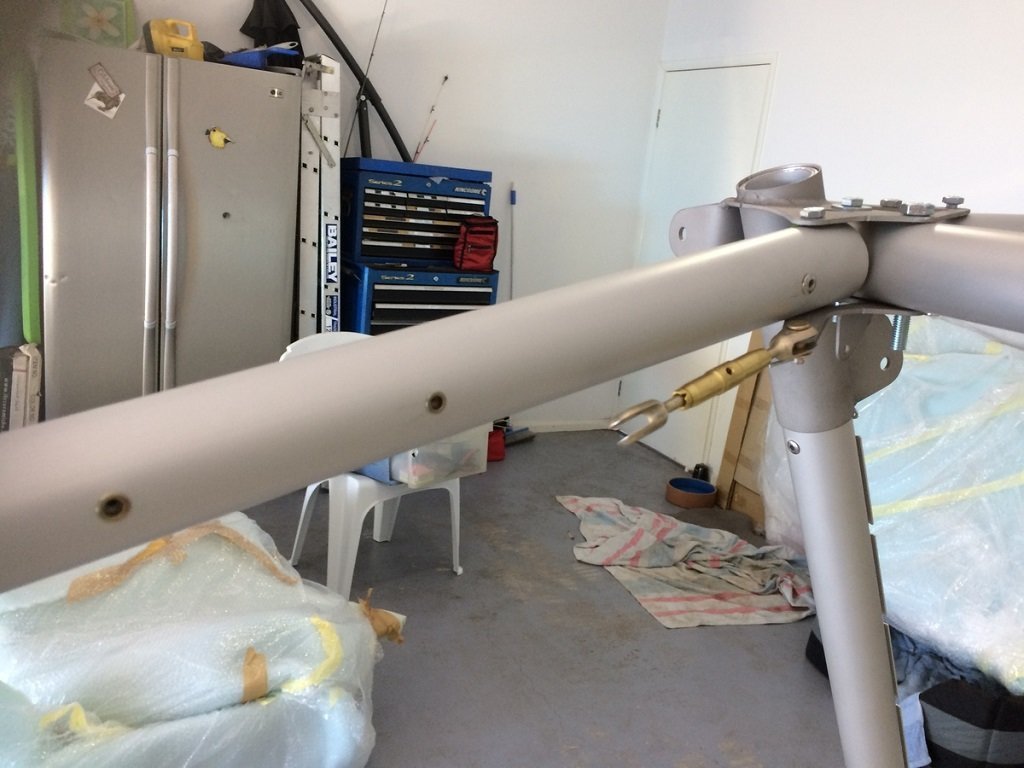

left side upper fuselage tube has two threaded holes. Also, make sure you put the turnbuckles in in step 2 before you do step 3 (which ties the two tubes together aft) otherwise you won’t be able to put the Clevis pin in. How do I know this?
