smokey487 Posted November 25, 2019 Posted November 25, 2019 Hi All I am putting it out there to see if anyone has a aileron rigging jig for the CA25 Skyfox gazelle? Physical one i can borrow, a set of drawings to make one or a lead on more info? Cheers Â
Keen Aviator Posted December 9, 2019 Posted December 9, 2019 Try Foxworker, he is a member on here. Cheers Ron Â

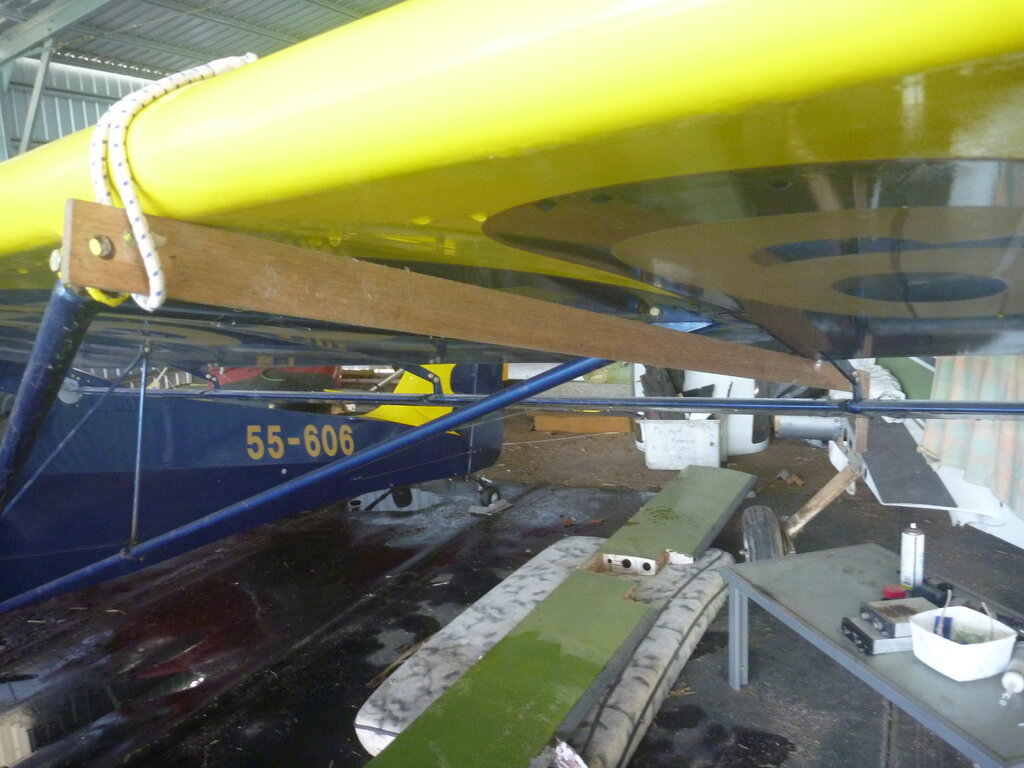

Blueadventures Posted December 9, 2019 Posted December 9, 2019 Hi Smokey This is what I made up so I could check the ailerons. You need two.   Â
smokey487 Posted December 10, 2019 Author Posted December 10, 2019 Hi Thanks I don't suppose you had a drawing or some measurements? Straight edge is fine just the curve i am really after. Cheers Â

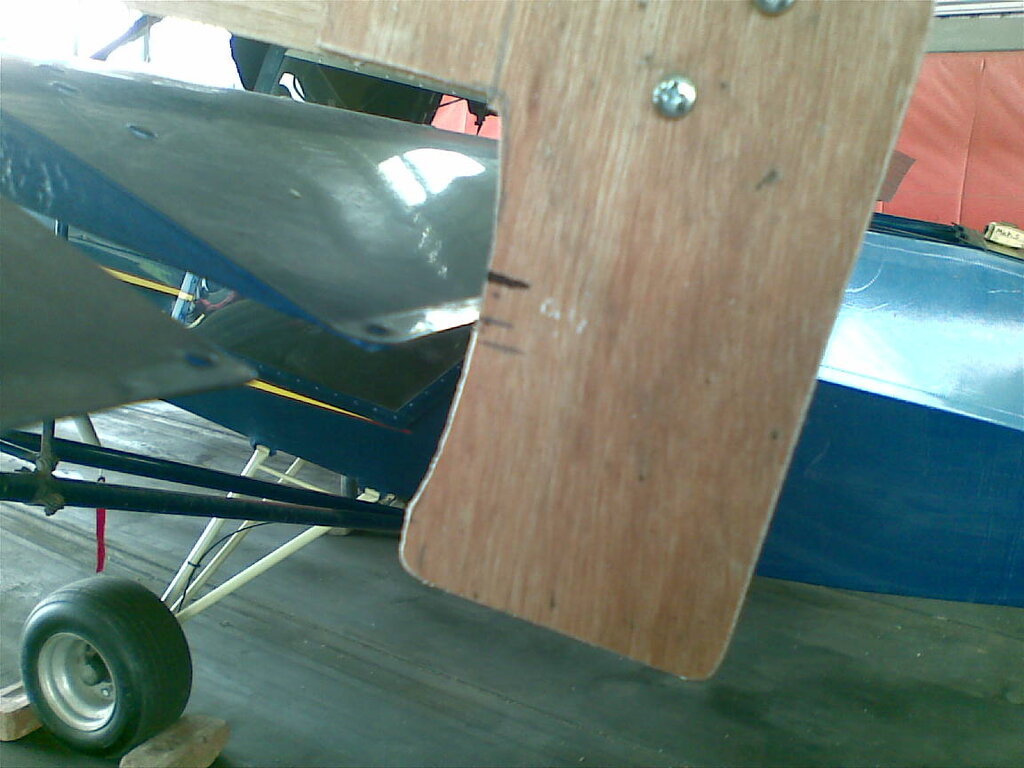

Blueadventures Posted December 10, 2019 Posted December 10, 2019 Hi Thanks I don't suppose you had a drawing or some measurements? Straight edge is fine just the curve i am really after. Cheers Have the straight edge timber or even alloy and attach the end piece and cut a rough curved shape then fit under wing a little off and hold a marker a distance behind the aileron and move it go through full deflection travel of aileron and cut out the line and that's it. I used shock cord over the top of wing to hold it on.   Â
smokey487 Posted December 12, 2019 Author Posted December 12, 2019 Excellent Thanks i get it now. Â
facthunter Posted December 13, 2019 Posted December 13, 2019  You only need to locate at the leading and trailing edges Can't you use levels a or a laser ? Once you test fly it you will probably adjust it a bit anyhow. Nev Â
